 This Trilogy lock has all the same features as the regular pushbutton Trilogy locks but with a Proximity card reader as an added feature! You can use a pin number alone or use a proximity card alone or use both for added security for any user.
• 2000 User codes: Master; manager; supervisor; basic user
• Users are individually programmed to use a card only, code only, or for highest security - both card and code
• Card data can be added to software via the lock, card reader module or PC
• Batch enroll allows many cards to be added quickly to the software via the lock with the use of PC
• Weatherproof and operates from -20° F to 151° F (-29° C to 66° C)
•This Trilogy model has the ability to, upon code entry, either valid or not valid to trigger a relay output to capture a cctv image.
•This Trilogy model has a unique ambush feature so if someone is forced to enter their code by an unauthorized entrant, the user simply adds an addition 2 digit code when entering their code and either a cctv can be snapped or an external alarm can be sounded and help notified.
• Fingertip (keypad) or Windows PC-programmable
• 500 scheduled events/schedules and up to 40,000 event Audit Trail that can be printed to AL-IR1 Infrared Printer or AL-DTM (data transfer module) or AL-PCI (PC Interface)
![These locks are battery powered](http://us.st12.yimg.com/us.st.yimg.com/I/853111_1826_1384468.jpg")
See handing diagram | See backset

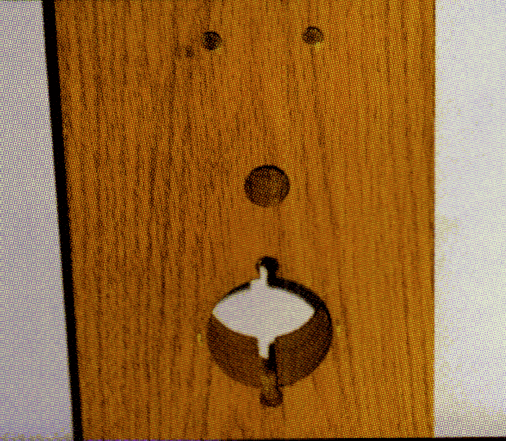

diagram | See door prep picture |
See

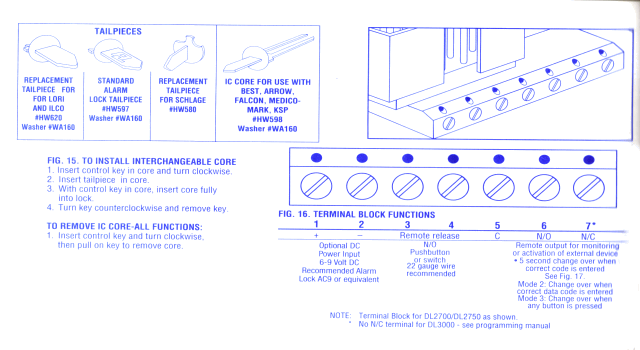

DC power and remote switch options | See for gate mounting
|
|  Alarm Lock Trilogy CD Software and Connecting Cable Pack For Laptops For 200, 300, 2000 And 3000 User ModelsWindows software and connecting cable for easy programming, scheduling and
log viewing on a laptop.
To program with a notebook or laptop computer, all you need is this software
and the connecting cable. (For use only with the 200, 300, 2000 user and proximity model Trilogy locks and keypad system).
SYSTEM REQUIREMENTS:
•IBM PC or compatible desktop or notebook computer
with 233 MHz or faster processor.
•At least 10 Mb available on hard drive
•At least 64 MB of RAM memory
•Microsoft Windows 95, 98, NT4.0 or higher
One unused RS-232 Serial Communications port (Com 1– 4) or USB Port
Please note:The AL-PCI may be used on Notebook Computer
models which have USB ports when used with the
Belkin model F5U103 USB Serial Adapter. It has been
tested and approved for use with the Trilogy
Windows software and connecting cable module.
This device is designed to be used on a 9 pin serial com port. If your computer has a 25 pin com port a 25 pin to 9 pin adapter must be used. Warning: Polarity MUST be observed when connecting to the lock. The tab or (-) must plug only into the left or black hole.
| | |  Alarm Lock Trilogy Infrared Audit Trail PrinterHand held printer used for printing event log audit trails and user
code list.
Can only be used with the higher end Trilogy locks and the new keypads.
| | |  HID Proximity Fobs in Lots Of 50The RF-programmable 1346 ProxKey® II proximity keyfob incorporates proximity technology into a convenient device approximately the size of an automotive key. Features • Offers universal compatibility with all HID proximity readers. • Provides an external number for easy identification and control. • Can be placed on a key ring for convenient entry. • Supports formats up to 85 bits, with over 137 billion codes. Proximity Fobs In Lots Of 50
Dimensions
1.9" x 0.9" x 0.345" max.
Proximity fobs in lots of 50
| | |  HID Proximity Fobs in Lots Of 10Same as above but in lots of 25
The 10 pack is only available in the Napco 36 bit format.
| | |  HID Proximity Cards In Lots Of 100The RF-programmable 1326 ProxCard II proximity access
card is the industry choice for a cost-effective solution
to proximity access control.
Features
• Offers universal compatibility with all HID proximity
readers.
• Provides durable packaging and consistent read
range.
• Provides an external number for easy
identification and control.
• Supports formats up to 85 bits, with over 137
billion codes.
• A PVC overlay allows for on-site photo ID using
most direct image printers.
Proximity cards in lots of 100
Dimensions
3.375" x 2.125" x 0.070" max.
Please note: if your not sure which format you need please give us a call or email us before ordering.
| | |  HID Proximity Cards Lots Of 50Order in lots of 50
These are flat white badge type cards.
| | |  HID Proximity Stickers For Trilogy Proximity Locks And Readers (In Lots Of 10)Adhesive Proximity Tag, Made of Lexan Plastic, Finish Black, Height 1 2/8 In, Width 1 2/8 In, Depth 6/8 In, Operating Temp Range -50 F to +160 F, For Use With Trilogy Proximity Locks and Readers. These stickers can stick to any card or flat surface.
The 125 kHz, 26 Bit MicroProx Tag provides the convenience of HID’s proximity technology in a small disk-shaped transponder. Simply attach the adhesive-backed tag to any nonmetallic card .
The size of a coin, the tag easily attaches to all nonmetallic materials, including PVC cards.
Seamlessly upgrade from Wiegand, magnetic stripe or barium ferrite technologies by simply adhering the Tag to your existing access card.
Easily and cost-effectively turn a plastic ID badge or contact smart chip card into a proximity credential! Add proximity access control capability to users' cell phones, PDAs and other similar nonmetallic devices.
| | |  Neck Lanyard Card Holder (12 Pack)• Fits around neck comfortably.
• Perfect to attach whistle or for
keeping house keys and proximity cards with slot cut outs and proximity fobs secure.
• Metal swivel allows clip to lie flat
against chest.
• Made of strong woven nylon.
• Measures 21-1/2" in length.
| | |  Weather Resistant Lock And Keypad Plastic CoverHere's a way to protect keyles door entry units from sleet, snow, sand and sun.
This super tough, durable little cover is useful for weatherproof units because ice and snow can
make them difficult to operate. It also protects against physical damage.
The cover and the hinges are molded of polycarboate, the same material used in pro football
helmets. Plus the hinge spring is formed from stainless steel. The unit comes complete with
mounting hardware and gasket. sti 6516
