Kaba E-Plex 5000 Electronic Lock is a very special lock. It combines the best characteristics of both a a heavy duty mechanical lock and a modern, easy to use electronic lock.
![These locks are battery powered](http://ep.yimg.com/ca/I/853111_1826_1384468.jpg")
Built on over 40 years of experience, the new E-Plex by Kaba combines the strength, simplicity and reliability of our industry leading Simplex locks with the enhanced security and convenience of electronic access control. The E-Plex 5000 is ideal for securing sensitive access points in multiple settings, especially locations with high user turnover. You’ll appreciate fully audited access control without the costs and problems of issuing, managing and collecting keys or magnetic cards. It’s never been easier to power up your access control.
Each site is assigned one Master level – the remaining 99 codes can be set to Manager, User, or Service levels. Service level codes can be programmed for access once, or unlimted entrance for a period of one to 24 hours – ideal for service personnel, meeting rooms, and rental space.
Easy to manage
Users and locks can be controlled at the door or with optional, easy-to-use Microsoft Excel based software. The software provides manageable control as your facility’s number of users and access points grow. User additions and deletions are completed quickly Each access code is assigned one of five authority levels that specify who has access to various lock functions.
•Simple to install, use and maintain
•100 access codes
•Extensive audit trail
•Programmable passage mode
•Takes 4 regular AAA batteries
•Installation requires no wiring through the door (Models with batteries located in exterior housing)
•Optional easy-to-use Excel based software
•Three-year warranty from lock activation date
•ANSI/BHMA grade 1 compliant
•

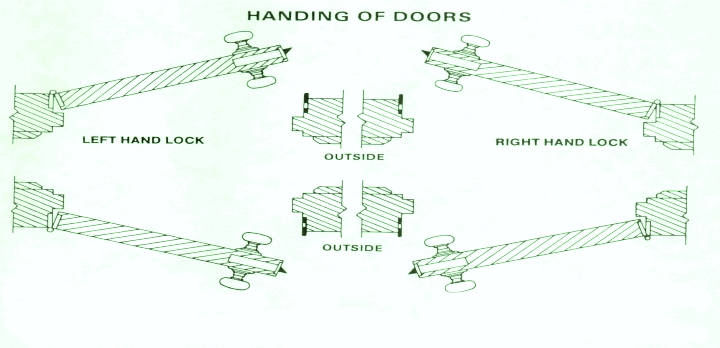

Easy to rehand so you don't need to choose left or right
•Will install on door thickness from 1 3/8 to 2 1/4 inches
•Comes with free back up mechanical key and cylinder
Multiple Access Codes
Easy to Manage Easy to Install
Audit Capability (Audit kit in stock soon)
Flexible
Three easy to set operation modes – combination (PIN) entry, passage, and lockout – give you the flexibility to control your facility’s entry requirements according to your security needs during the business day and beyond. Variety of key override formats fit existing master key systems – key-inlever, interchangeable and removable core options. Passage can be set on or off, or programmed to relock after a specified period.
User-friendly
Audio and visual indicators can be set to notify users when access is granted or denied. Unique, yet convenient pushbutton design deters code stealing over traditional telephone style keypads. Lock features ADA-compliant levers.
Customizable user parameters
User access codes can be set from four to eight digits. The time interval between combination entry and relock is variable from two to 20 seconds. The antitamper feature disables the lock after multiple invalid combination entries – set for between three to nine attempts and up to 90 seconds.
Easy to maintain
Durable heavy-duty construction requires minimal maintenance. Weatherized housings are tested to operate in hot or cold climates. Battery options give you the choice of location in exterior or interior housing. Exterior housing location requires no additional wiring through the door, and the interior design makes multiple door battery replacement simple. Visual indicators alert you when battery is low.
Three-year warranty. Built-in warranty counter begins on date of lock activation.
![Dimensions](http://ep.yimg.com/ca/I/853111_1812_1978465.jpg")
Easy to install
The lock ships ready for installation on the door. It can be easily setup and programmed off the door, prior to installation – especially useful when installing multiple locks. The fully contained housings install easily on wood or metal doors and provide a quick and simple retrofit to any standard 161 cylindrical door prep. A non-handed design easily accommodates both left - and righthand doors. No gaskets required for outdoor use.
Optional E-Plex software
Easy-to-use point & click Microsoft Excel based software requires no specialized knowledge to operate. Software manages up to 100 enrolled access codes per door and up to 10,000 doors per site. Manage multiple sites with one software package.
Please note: this new lock comes with a free Kaba 90 keyway
for key backup. If you need more than the 2 keys it comes with you may have difficulty having more keys cut in the future because the Kaba 90 keyway in is not a common type.
For more common type keyways that you can order with this lock for an additional fee, please see the options below.
If you think this may be an issue please give us a call before ordering.
