Home > » Keyless Mechanical Pushbutton Locks > Digital Mechanical Combination Pushbutton Lock (Non Electronic)
Click to enlarge

Digital Mechanical Combination Pushbutton Lock (Non Electronic)






Click here to see how easy it is to change the combination

Double sided locks now also available - Great for gate control! - see below.



If you have been searching for the best value in Keyless Locks you have found it! These are great ultra high quality mechanical combination pushbutton locks that are manufactured in China and if they were made in the US the cost would be more than double. Weather resistant - see below for special weather cover for even better weather resistance.
They are not grade one heavy duty commercial grade type such as some of the Kaba locks but still great value for the money. They come several different ways including lever handle latch sets and deadbolts. As you can see, there are a lot of buttons; 10 number buttons and 4 letter buttons. You can choose a two digit combination or as many as a six digit combination. Since it's a mechanical lock the same digits can not be repeated. The order the digits are entered in dosen't matter. For instance, 1234 looks the same to this lock as 2143. To change the combination, the lock has to be unscrewed from the door, but it's easy to do. I usually find it easier to change the combination on this lock than on some other brands that don't require removal from the door!
Please note:Beware of inferior copies of these locks elsewhere on web. We are an authorized distributor of this great keyless lock and have been selling and installing them for almost 30 years so we know just how good and reliable they are.

These locks are mechanical with no battery needed
No battery needed for these locks!

The picture above on the left is how the lock looks seated flush to the door without a gasket. The picture on the right shows the lock used with the optional heavy gasket.

Please note: The round knob on the bottom under the buttons is not a door knob. It's smaller than a typical door knob but has a similar function. When the correct combination is entered this knurled knob is turned to retract the latch or bolt.

To Clarify: The latch models come in two ways. The first is as a replacement for the bottom lock if that lock is a key-in-knob type with a round hole of between 1 1/2" or 2 1/8". If your current lock is a mortise type lock, then you'll have to replace it with the same type, and this combo lock won't work. The latch lock also comes as a top lock that will go a few inches above your primary lock. The main difference in the two latch locks is that when used as a bottom primary lock, the inside lever is much longer. When used as a top lock the inside lever is really just a small handle. In either case, there is never a lever or handle on the outside, only a knurled knob. On the lever version there is a small switch on the inside that enables you to keep the latch back so it won't lock automatically if that's what you want (sort of like the old-style night latch locks).

Important: these locks come with two smaller rubber gaskets that fit around the lock on both sides. These are fine if the hole is 1 1/2". However, many modern doors are drilled with a 2 1/8" hole, and the rubber gaskets that come with each lock in our opinion, won't always work properly. Instead, order the optional larger gaskets. They are $15 per pair and will make your installation much easier and more secure. To order see below.

  • Fits doors 1 3/8" to 2"
  • Heavy duty construction (weight is 3 pounds)
  • Available as standard 2 3/8" or optional 2 3/4" backset for an extra $15 - see options below
  • No batteries needed - completely mechanical
  • Great for gate installations!


    Dimensions:
    Without either of the surrounds: 5½" L X 1 5/8" W

    With small surround that comes with these locks add 1/8" - With the larger optional surround or gasket (highly recommended} add ½"

    The various models this lock comes in can be a little confusing. See the diagrams below or email or call us if your not sure which model you need.

    Note: Antique Brass is sometimes available. Please call or e-mail

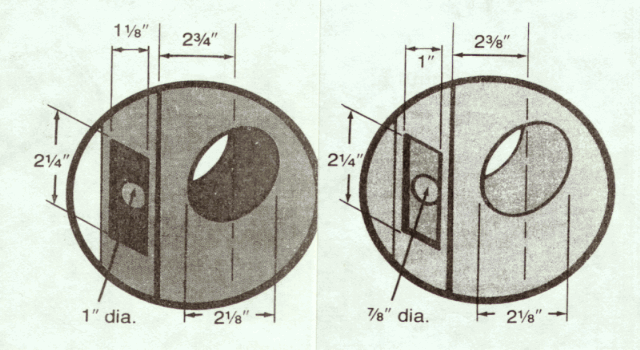

    See backset diagram
    Click here to see how easy it is to change the combination

    Special - for a short time only: order 10 locks and get an 11th lock for free!



  • Digital Mortise Mount Mechanical Pushbutton Deadbolt Lock
    Digital Mortise Mount Mechanical Pushbutton Latch Lock
    Digital Mortise Mount Mechanical Pushbutton Deadbolt Lock

    Hot Mortise Type This is the deadbolt version and is usually installed as the top lock.Regular price $198.00
    The Keyless Store's price: $129.00
    Digital Mortise Mount Mechanical Pushbutton Latch Lock

    Hot Mortise Type - The same as the above lock but this is the deadlatch version and is usually installed as the top lock. Use this lock instead of the deadlock if you want the lock to automatically lock when the door closes.Regular price $198.00
    The Keyless Store's price: $129.00
    Digital Mortise Mount Mechanical Pushbutton Latch - As A Bottom Type Lock With Interior Lever
    Digital Surface Mount Mechanical Pushbutton Deadbolt Lock
    Digital Mortise Mount Mechanical Pushbutton Latch - As A Bottom Type Lock With Interior Lever

    Hot A mortise latchlock with a lever handle (lever on inside only)-A good choice for replacing a common key-in-knob lock . The hand can be changed on this lock.Regular price $219.00
    The Keyless Store's price: $139.00
    Digital Surface Mount Mechanical Pushbutton Deadbolt Lock

    On Sale! Surface mount-a good choice for the typical metal apt door with a flush frame where the entire lock is mounted on the inside surface of the door (like a Segal type lock ) rather than a mortise type lock. This lock also can be used in cabinet installations.Regular price $249.00
    The Keyless Store's price: $189.00
    Double Sided Mechical Digital Lock Great For Gates!
    Codelocks Mortise Mount Latch Lock With Key ByPass
    Double Sided Mechical Digital Lock Great For Gates!

    Hot This is a double sided lock (keypad on both sides). Both sides come preset to the same combination. You can leave it as is or change it. If you like, we can pre-install this lock in a welded box ready for mounting.$349.00
    Codelocks Mortise Mount Latch Lock With Key ByPass

    On Sale! A moderately priced reliable latch type lock with a small lever on the inside and knob with key bypass on the outside. A good choice for replacing a common key-in-knob lock. Among the best values in mechanical pushbutton locks because it's heavy duty and includes key backup and now available in both Chrome and Brass finish.Regular price $239.00
    The Keyless Store's price: $179.00
    Codelocks Heavy Duty Mechanical Pushbutton Latch Lock
    Codelocks Medium Duty Lever Mechanical Pushbbutton Lock With Passage Function
    Codelocks Heavy Duty Mechanical Pushbutton Latch Lock

    Hot This new mechanical pushbutton lock is very heavy duty with a real passage function (may be put temporarily in a no lock mode). It will replace most bottom type keyed latch knob locks. Installation is very easy. A great value. Similar locks are selling for $100 more and don't have the passage function feature or the heavy metal gasket - both included.Regular price $339.00
    The Keyless Store's price: $269.00
    Codelocks Medium Duty Lever Mechanical Pushbbutton Lock With Passage Function

    On Sale! The Codelock 400 series is a medium duty mechanical combination lock with full size lever handles. The lever handles allow it to be used where the knob operated push button lock is unsuitable.Regular price $249.00
    The Keyless Store's price: $198.00
     Pushbutton Knob Latch Lock With Key Bypass
    Hook Bolt Lockey Mechanical Pushbutton  For Sliding Doors
    Pushbutton Knob Latch Lock With Key Bypass

    $189.00
    Hook Bolt Lockey Mechanical Pushbutton For Sliding Doors

    $198.00
    2 3/8 Inch Backset Latch (Optional Or To Replace)
     Bolt  (Optional Or To Replace)
    2 3/8 Inch Backset Latch (Optional Or To Replace)

    $25.00
    Bolt (Optional Or To Replace)

    For longer backsets - see backset diagram$25.00
    Inside Replacement For Digital And Ultra lever Type Latch Locks
    Inside Replacement For Digital And Ultra Latch And Deadbolt Locks
    Inside Replacement For Digital And Ultra lever Type Latch Locks

    $19.00
    Inside Replacement For Digital And Ultra Latch And Deadbolt Locks

    $19.00
    Weather Resistant Lock And Keypad  Plastic Cover
    Larger Gasket

    A pair of larger hard ABS plastic gaskets to cover a 2 1/8 inch hole. You dont need this if the hole your using is 1 1/2 inch or less.$30.00
    Weather Resistant Lock And Keypad Plastic Cover

    Hot
    Spring loaded so it will close automatically after usage. Highly recommended to cover locks, readers or keypads on exterior installations! Great for many stand alone locks and Proximity and Mag-stripe Card readers!$39.00

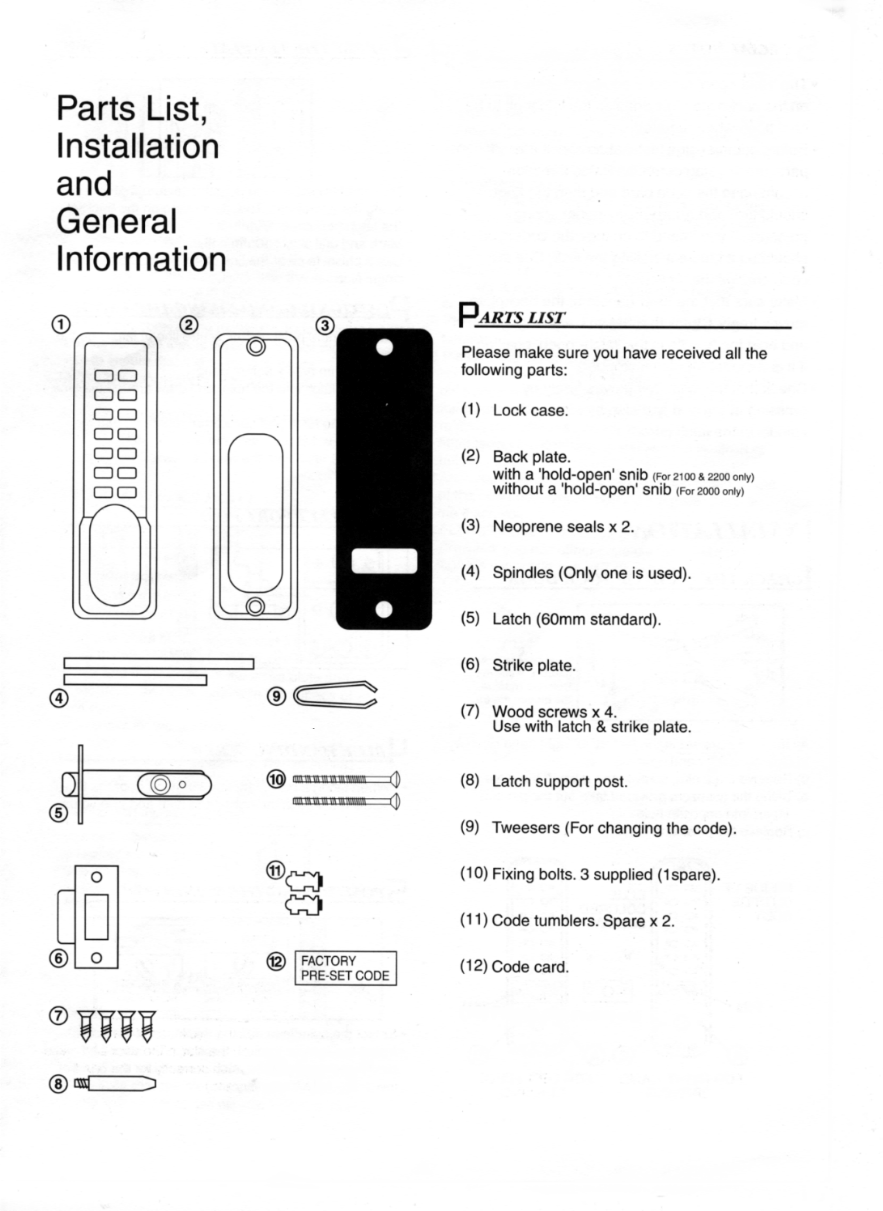

    See all the parts included with this lock

    Click to see the parts you'll need to install

    Template For 2 3/4 Inch Backset In The PDF Format

    Template For 2 3/8 Inch Backset In The PDF Format

    Installation Guide In The PDF format
